## IMSE 440
## Applied Statistical Models in Engineering

## Simple linear regression

## Assessing model accuracy

[ISLR book](https://www.statlearning.com): Chapter 3.1.3

---
# Assessing the accuracy of the model

If the $H_0$ is rejected, meaning there is a significant relationship between $x$ and $y$,

we want to see .red[how strong is this relationship].

.center[How?]

Look at the extent to which the model fits the data.

.center[
![:scale 38%](images/xyplane_1.jpg)

![:scale 38%](images/xyplane_2.png)
]

---

.center[
![:scale 40%](images/xyplane_1.jpg)

![:scale 40%](images/xyplane_2.png)
]

How about using the "average amount of errors"  ?

$$\text{RSE}=\sqrt{\frac{e_1^2+e_2^2+\cdots+e_n^2}{n-2}}=\sqrt{\frac{\text{RSS}}{n-2}}$$

RSE provides an absolute measure of model accuracy.

---

$$\text{RSE}=\sqrt{\frac{e_1^2+e_2^2+\cdots+e_n^2}{n-2}}=\sqrt{\frac{\text{RSS}}{n-2}}$$

In the advertising example, "sales ~ TV"

```
RSE = 3.26
```

Interpretation

The actual sales in each market deviate from the model prediction by an average of 3,260 unit.

It is not always clear what constitutes a "good" RSE.

---

# Residual Sum of Squares

$$
\small{
\begin{aligned}
&\text{RSS}=e_1^2+e_2^2+\cdots+e_n^2 \\\
\\\
&\text{where $e_i=y_i-\hat{y}_i$} \\\
\end{aligned}
}
$$

For a simple linear regression model,
$\small{\hat{y}_i=\hat{\beta}_0+\hat{\beta}_1x_i}$

.center[![:scale 30%](images/xyplane_1.jpg)]

RSS measures the total amount of variability that is .red[left unexplained] after fitting the model.

---
# Total Sum of Squares

$$
\small{
\begin{aligned}
&\text{TSS}=(y_1-\bar{y})^2+(y_2-\bar{y})^2+\cdots+(y_n-\bar{y})^2 \\\
\\\
&\text{where $\bar{y}=\frac{1}{n}\sum y_i$} \\\
\end{aligned}
}
$$

.center[![:scale 30%](images/xyplane_1.jpg)]

TSS measures the total amount of variability that is .red[inherent in the response $Y$] before fitting a model.

---
# Total Sum of Squares

$$
\small{
\begin{aligned}
&\text{TSS}=(y_1-\bar{y})^2+(y_2-\bar{y})^2+\cdots+(y_n-\bar{y})^2 \\\
\\\
&\text{where $\bar{y}=\frac{1}{n}\sum y_i$} \\\
\end{aligned}
}
$$

Note to calculate TSS we only need the data about $y$.

TSS has nothing to do with what model is used.

---

$$R^2=\frac{\text{TSS}-\text{RSS}}{\text{TSS}}=1-\frac{\text{RSS}}{\text{TSS}}$$

$R^2$ measures the .red[proportion] of variability in $Y$ that is explained by the model.

In the advertising example, "sales ~ TV"

```
R2 = 0.612
```

Interpretation

61.2% of the variability in the sales is explained by a linear regression on TV budget.

---

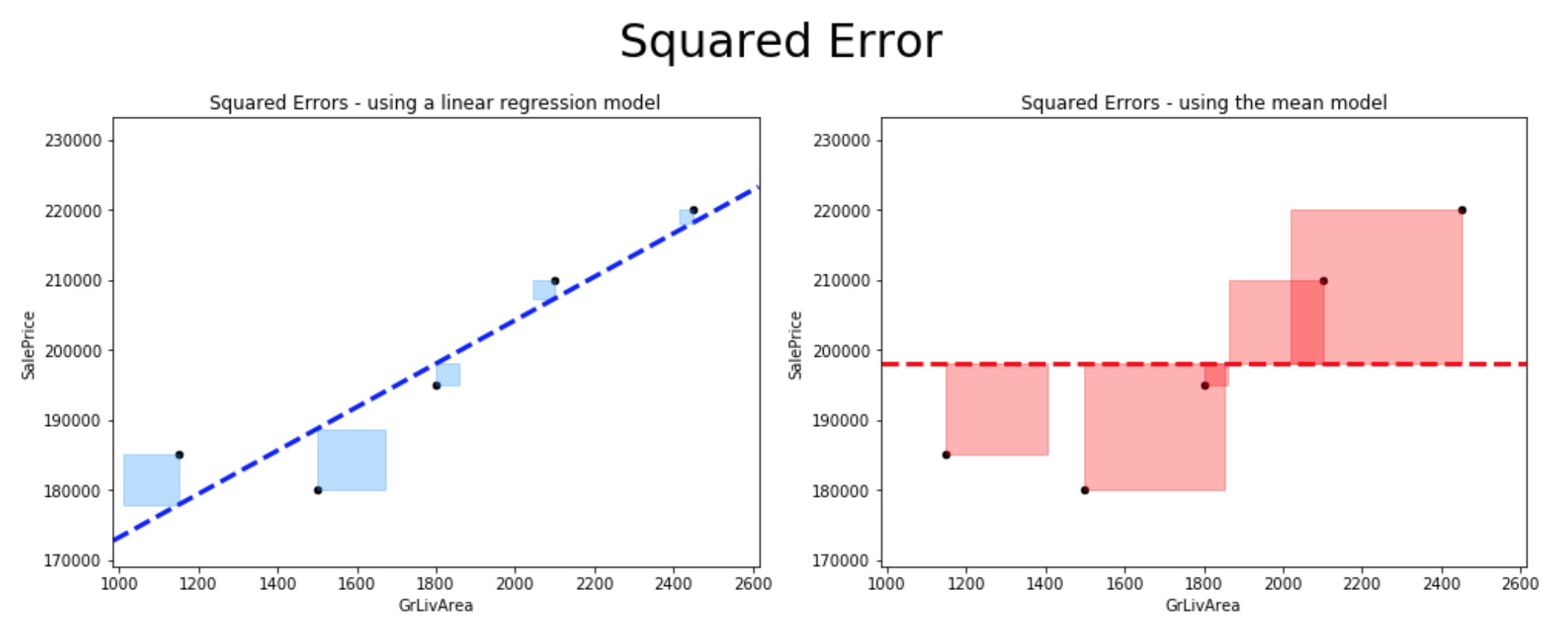

.center[![:scale 80%](images/R2_visual_1.jpg)]

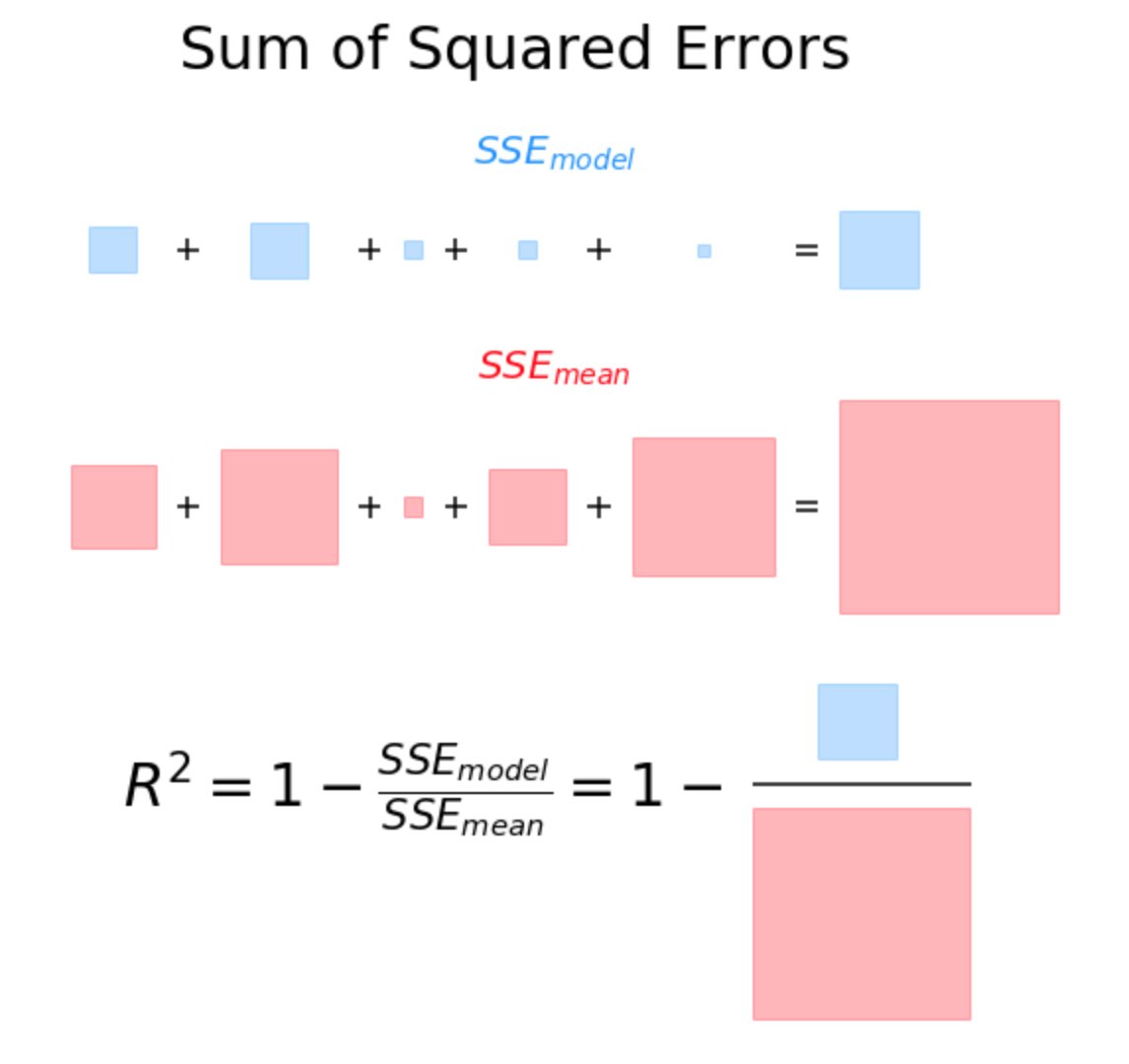

.center[![:scale 40%](images/R2_visual_2.jpg)]

.gray[.tiny[[Image source](https://twitter.com/TedPetrou/status/1205897381356683264)]]

---

$$R^2=1-\frac{\text{RSS}}{\text{TSS}}$$

Property:

$$R^2 \leq 1$$

--
If a model is accurate, the RSS will be much smaller compared to TSS, $R^2$ will be close to 1.

---

$$R^2=1-\frac{\text{RSS}}{\text{TSS}}$$

$$
\begin{aligned}
\text{where } \text{RSS}&=\sum (y_i - \hat{y}_i)^2 \\\
\text{and } \text{TSS}&=\sum (y_i - \bar{y})^2 \\\
\end{aligned}
$$

The TSS can be considered as a special case of RSS when a "mean model" is used.

$$\hat{y}_i=\bar{y}$$

.center[![:scale 30%](images/xyplane_1.jpg)]

---

$$R^2=1-\frac{\text{RSS}}{\text{TSS}}$$

$$
\begin{aligned}
\text{where } \text{RSS}&=\sum (y_i - \hat{y}_i)^2 \\\
\text{and } \text{TSS}&=\sum (y_i - \bar{y})^2 \\\
\end{aligned}
$$

The definition of $R^2$ does not rely on the form of the model (e.g., linear regression).

In an OLS linear regression, we minimize RSS.

$$\text{thus, }\text{RSS} \leq \text{TSS}$$

$$\text{thus, }0 \leq R^2 \leq 1$$

---

$$R^2=1-\frac{\text{RSS}}{\text{TSS}}$$

However, in theory, $R^2 \leq 0$ does not always hold.

.center[
![:scale 40%](images/xyplane_1.jpg)

![:scale 40%](images/xyplane_1.jpg)
]

In practice, we can always fall back to a "mean model" which has $R^2=0$.

---

Population covariance and correlation (coefficient)

$$\small{
  \begin{aligned}
  \text{cov}(X, Y)&=\text{E}\big[\big(X-\text{E}[X]\big)\big(Y-\text{E}[Y]\big)\big] \\\
  \\\
  \rho&=\frac{\text{cov}(X, Y)}{\sqrt{\text{var}(X) \text{var}(Y)}} \\\
  \end{aligned}
}
$$

--
Sample covariance and correlation (coefficient)

$$\small{
  \begin{aligned}
  \text{cov}(x, y)&=\frac{\sum(x\_i-\bar{x})(y\_i-\bar{y})}{n-1}=\frac{S\_{xy}}{n-1} \\\
  \\\
  r&=\frac{\sum(x\_i-\bar{x})(y\_i-\bar{y})}{\sqrt{\sum(x\_i-\bar{x})^2\sum(y\_i-\bar{y})^2}}=\frac{S\_{xy}}{\sqrt{S\_{xx}S\_{yy}}} \\\
  \end{aligned}
}
$$

---

$$\small{r=\frac{\sum(x\_i-\bar{x})(y\_i-\bar{y})}{\sqrt{\sum(x\_i-\bar{x})^2\sum(y\_i-\bar{y})^2}}=\frac{S\_{xy}}{\sqrt{S\_{xx}S\_{yy}}}}$$

$r$ measures the .red[linear relationship] between $x$ and $y$.

![:scale 100%](https://upload.wikimedia.org/wikipedia/commons/thumb/d/d4/Correlation_examples2.svg/1000px-Correlation_examples2.svg.png)

---

$$\small{r=\frac{\sum(x\_i-\bar{x})(y\_i-\bar{y})}{\sqrt{\sum(x\_i-\bar{x})^2\sum(y\_i-\bar{y})^2}}=\frac{S\_{xy}}{\sqrt{S\_{xx}S\_{yy}}}}$$

Can we use $r$ to assess the accuracy of a fitted OLS simple linear regression model?

Yes, In fact, for OLS simple linear regression, we have

$$R^2=r^2$$

---

$x$: ice cream sales 🍦

$y$: number of people drowning in swimming pool 🏊

Are $x$ and $y$ correlated?

# .red[Correlation does not equal causation.]
