## IMSE 440
## Applied Statistical Models in Engineering

## Linear regression

[ISL with Python book](https://www.statlearning.com): Chapter 3.1

---

```

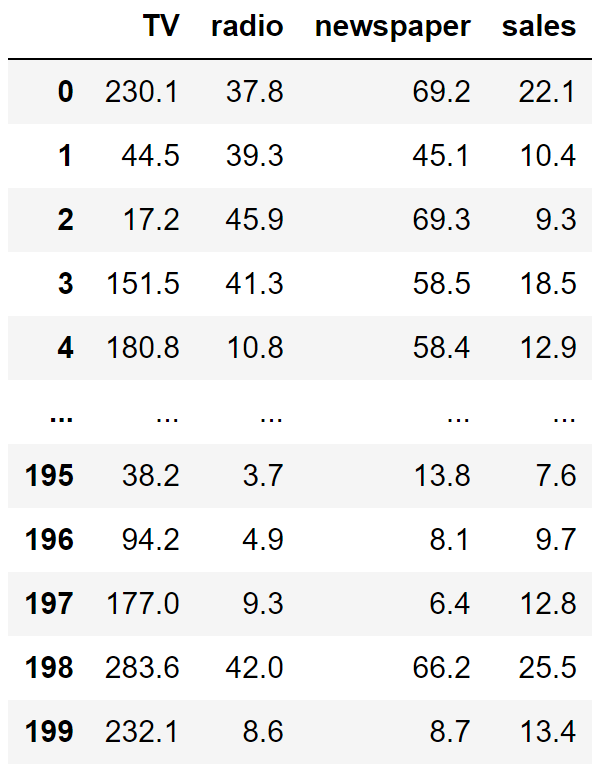

import pandas as pd
ads = pd.read_csv("./data/advertising.csv")
```

.center[![:scale 50%](images/advertising.png)]

---

```

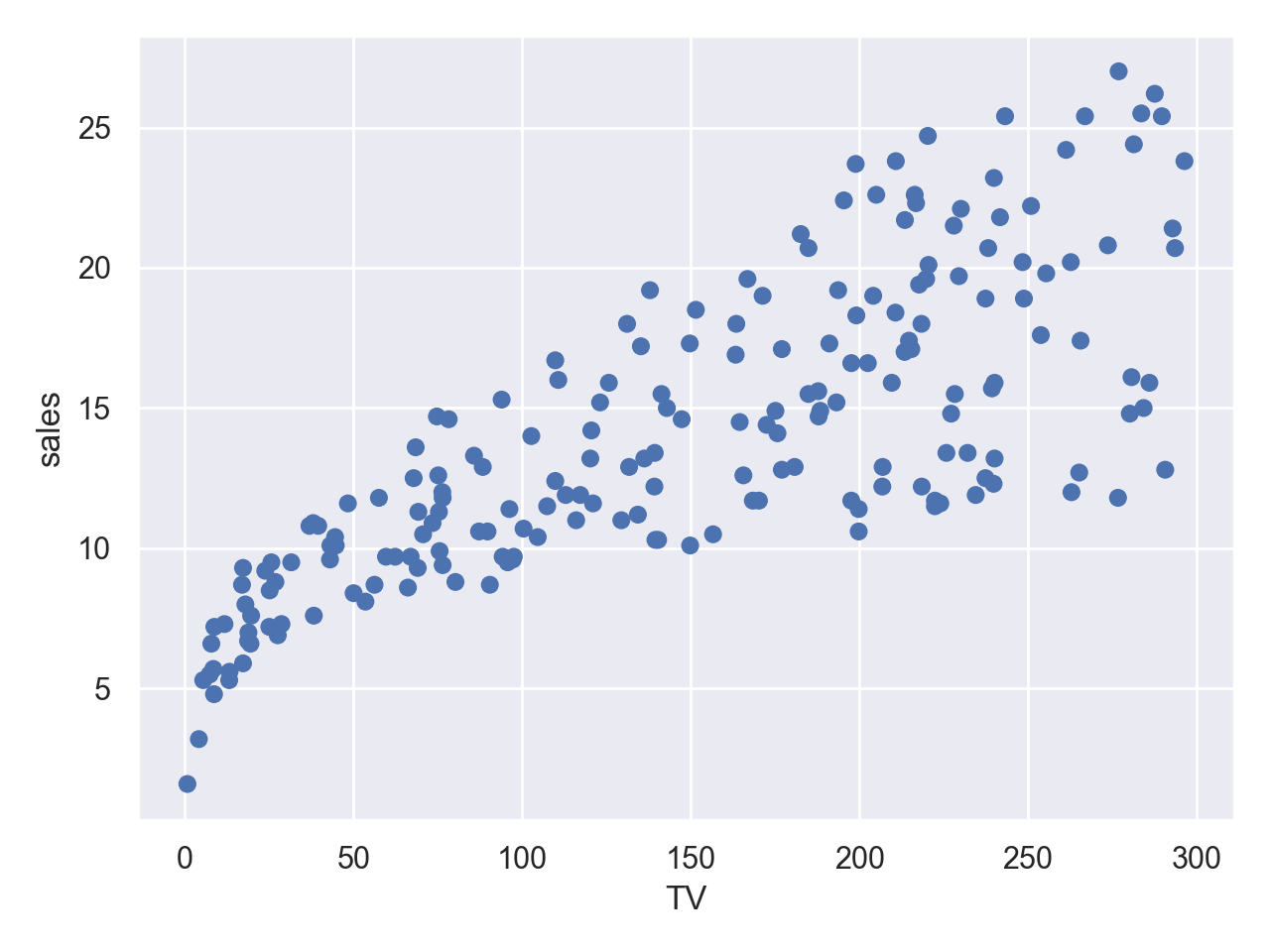

import seaborn.objects as so
(
    so.Plot(data=ads, x='TV', y='sales')
    .add(so.Dot())
)
```

.center[![:scale 70%](images/tv_sales.png)]

---
# Questions we may ask

- .red[Is there a relationship] between advertising budget (TV, radio, and newspaper) and the sales?
--

- If yes, .red[how strong] is the relationship?
--

- Is the relationship .red[linear]?
--

- .red[How accurately] can we estimate the effect of each channel on sales?
--

- Given the budget, how accurately can we .red[predict] future sales?
--

- Is there [synergy](https://en.wikipedia.org/wiki/Synergy) effect among the media?

---

# [Linear regression](https://en.wikipedia.org/wiki/Linear_regression)

Study the relationship between two or more variables

$$\text{sales} = f(\text{TV}) = a + b \cdot \text{TV}$$

.green[Independent variables] (x):

Input variables, also called .green[predictors] or .green[features].

.red[Dependent variable] (y):

Output variable, also called .red[response] or .red[target].

$$
\begin{aligned}
\text{sales} &= f(\text{TV}, \text{radio}, \text{newspaper}) \\\
&= \beta_0 + \beta_1 \cdot \text{TV} + \beta_2 \cdot \text{radio} + \beta_3 \cdot \text{newspaper} \\\
\end{aligned}
$$

---

# [Simple linear regression](https://en.wikipedia.org/wiki/Simple_linear_regression)

The model takes the form

$$\require{color}\colorbox{yellow}{$Y= \beta_0 + \beta_1 \cdot x + \epsilon$}$$

$$\text{where }\; \epsilon \sim \text{N}(0, \sigma^2)$$

x is any given input to the model.

epsilon is the error term.

- modeled as a [normally-distributed](https://probstats.org/normal.html) random variable

beta_0 & beta_1 are unknown parameters in the model.

.red[Question: Is Y a random variable?]

---
$$\require{color}\colorbox{yellow}{$Y= \beta_0 + \beta_1 \cdot x + \epsilon$}$$

$$\text{where }\; \epsilon \sim \text{N}(0, \sigma^2)$$

- What is the .red[expected value] of Y?

- What is the .red[variance] of Y?

- What .red[distribution] does Y follow?

---

$$Y= \beta_0 + \beta_1 \cdot x + \epsilon$$

$$\text{where }\; \epsilon \sim \text{N}(0, \sigma^2)$$

$$Y \sim \text{N}(\beta_0 + \beta_1 x, \sigma^2)$$

beta_0: .red[intercept]: expected value of Y when x=0.

--

beta_1: .red[slope]: expected change of Y per unit change of x.

---
# Visualizing beta_0 and beta_1

.center[![:scale 65%](images/xyplane.jpg)]

---
# Estimate the parameters from data

$$\text{E}[\text{sales}] = \beta_0 + \beta_1 \cdot \text{TV}$$

.center[![:scale 80%](images/tv_sales.png)]

---
What would be our "best" estimates of beta_0 and beta_1?

(What it the model that .green[fits the data the best]?)

.center[![:scale 45%](images/xyplane.jpg)]

$$e_i=y_i-\hat{y}_i=y_i-(\beta_0+\beta_1x_i), \;\; i=1, 2, \cdots, n.$$

---

Can we use the sum of the residuals as a measure?

$$e_1+e_2+\cdots+e_n$$

Bad idea, as the positive and negative residuals would cancel each other out.

We square the residuals before summing them up.

$$\begin{aligned}
\text{RSS}&=e\_1^2+e\_2^2+\cdots+e\_n^2 \\\
\\\
&=\sum\_{i=1}^n e\_i^2 =\sum\_{i=1}^n \big[y\_i-(\beta\_0+\beta\_1 x\_i)\big]^2 \\\
\end{aligned}
$$

It is called the [Residual Sum of Squares (RSS)](https://en.wikipedia.org/wiki/Residual_sum_of_squares).

---

Given n pairs of data

$$(x_1, y_1), (x_2, y_2), \cdots, (x_n, y_n)$$

We choose beta_0 and beta_1 such that the RSS is minimized.

$$ \min\_{\beta\_0, \beta\_1}f(\beta\_0, \beta\_1)=\text{RSS}= \sum\_{i=1}^n \big[y\_i - (\beta\_0 + \beta\_1 x\_i)\big]^2 $$

This method is called [Ordinary Least Squares (OLS)](https://en.wikipedia.org/wiki/Ordinary_least_squares).

---
# Ordinary Least Squares (OLS)

$$ \min\_{\beta\_0, \beta\_1}f(\beta\_0, \beta\_1)=\sum\_{i=1}^n \big[y\_i - (\beta\_0 + \beta\_1x\_i)\big]^2 $$

Take partial derivatives w.r.t. beta_0 and beta_1, set them to 0.

$$\begin{aligned}
\frac{\partial f(\beta_0, \beta_1)}{\partial \beta_0} &=0 \\\
\\\
\frac{\partial f(\beta_0, \beta_1)}{\partial \beta_1} & =0
\end{aligned}
$$

<!-- ???

$$\begin{aligned}
\frac{\partial f(\beta_0, \beta_1)}{\partial \beta_0} &= -\sum2\big[y_i - (\beta_0 + \beta_1x_i)\big]=0 \\\
\\\
\frac{\partial f(\beta_0, \beta_1)}{\partial \beta_1} &= -\sum2\big[y_i - (\beta_0 + \beta_1x_i)\big]x_i=0
\end{aligned}
$$ -->

---

$$\begin{aligned}
\frac{\partial f(\beta_0, \beta_1)}{\partial \beta_0} &=0 \\\
\\\
\frac{\partial f(\beta_0, \beta_1)}{\partial \beta_1} & =0
\end{aligned}
$$

Then use linear algebra to solve for beta_0 & beta_1.

---

# Calculus refresher

$$\begin{aligned}
\frac{d}{dx}\(c)&=0 \\\
\\\
\frac{d}{dx}\(kx)&=k \\\
\\\
\frac{d}{dx}\big(x^2\big)&=2x
\end{aligned}
$$

The chain rule:

$$\frac{d}{dx}\bigg(f\big(g(x)\big)\bigg)=f'\big(g(x)\big)\cdot g'(x)$$

---
# OLS solution

$$
\large{
\begin{aligned}
\hat{\beta}\_1&=\frac{n\sum{x\_i y\_i}-\sum{x\_i}\sum{y\_i}}{n\sum{x\_i^2}-(\sum{x\_i})^2} \\\
\\\
&=\frac{\sum{(x\_i-\bar{x})(y\_i-\bar{y})}}{\sum{(x\_i-\bar{x})^2}} =\frac{S\_{xy}}{S\_{xx}} \\\
\\\
\hat{\beta}\_0&=\bar{y}-\bar{x}\hat{\beta}\_1 \\\
\end{aligned}
}
$$

---

$$(x_1, y_1), (x_2, y_2), \cdots, (x_n, y_n)$$

[Sample covariance](https://en.wikipedia.org/wiki/Covariance#Calculating_the_sample_covariance):

$$\text{cov}(x, y)=\frac{\sum{(x\_i-\bar{x})(y\_i-\bar{y})}}{n-1}$$

[Sample variance](https://imse317.github.io/lectures/chap-1/measure-of-variability):

$$\text{var}(x)=\frac{\sum{(x\_i-\bar{x})^2}}{n-1}$$

OLS slope estimate:

$$\hat{\beta}\_1 = \frac{\sum{(x\_i-\bar{x})(y\_i-\bar{y})}}{\sum{(x\_i-\bar{x})^2}} =\frac{\text{cov}(x, y)}{\text{var}(x)}$$

---

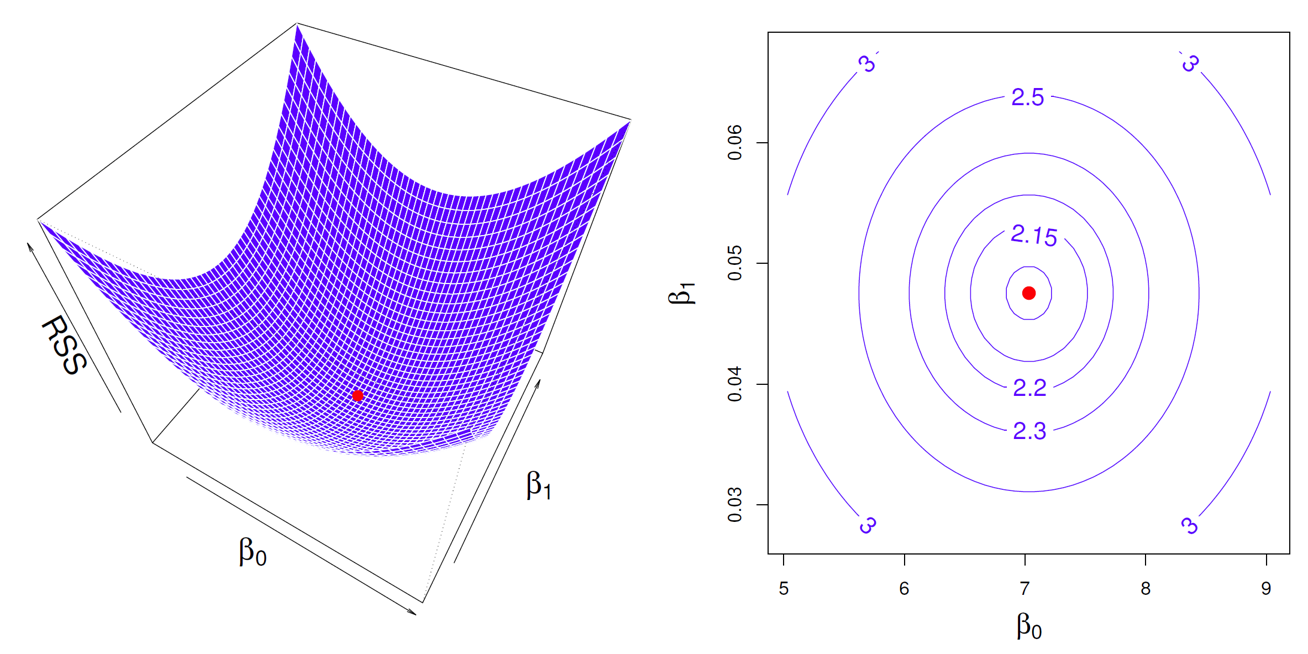

# Visualizing OLS

$$\small{\min_{\beta_0, \beta_1}f(\beta_0, \beta_1)=\sum\big[y_i - (\beta_0 + \beta_1x_i)\big]^2}$$

.center[![:scale 100%](images/RSS_curve.png)]

---
# Visualizing OLS

<https://seeing-theory.brown.edu/regression-analysis/>

---
