## IMSE 440
## Applied Statistical Models in Engineering
<br>
## Multiple linear regression

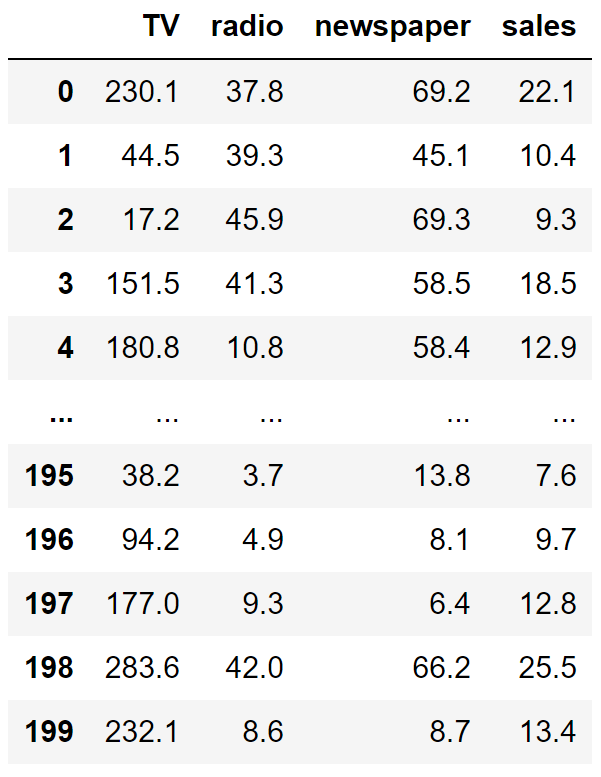

## Introduction

---

.center[![:scale 60%](./images/advertising.png)]

---

class: middle, center

Advertising data visualization

# [umich.edu/~fredfeng/advertising](http://umich.edu/~fredfeng/advertising)

---

$$
\begin{aligned}
\text{sales}&=\beta_0+\beta_1\cdot\text{TV}+\epsilon \\\
\\\
\text{sales}&=\beta_0+\beta_1\cdot\text{radio}+\epsilon \\\
\\\
\text{sales}&=\beta_0+\beta_1\cdot\text{newspaper}+\epsilon \\\
\end{aligned}
$$

<br>

A better approach:

Assigning each predictor a separate slope parameter in a single model.

$$\small{\text{sales}=\beta_0+\beta_1\cdot\text{TV}+\beta_2\cdot\text{radio}+\beta_3\cdot\text{newspaper}+\epsilon}$$

---
# Multiple linear regression

$$Y=\beta_0+\beta_1\cdot x_1+\beta_2\cdot x_2+\cdots+\beta_p\cdot x_p+\epsilon$$

$$\text{where } \epsilon \sim \text{N}(0, \sigma^2)$$

$$\text{E}[Y]=\beta_0+\beta_1\cdot x_1+\beta_2\cdot x_2+\cdots+\beta_p\cdot x_p$$

--
Interpretations

$\beta_0$: intercept

--

.red[$\text{E}[Y]$ when $x_1=x_2=\cdots=x_p=0$]

$\beta_j$: the slope associated with $x_j$ where $j=1, 2, \cdots, p$

.red[expected change of $Y$ per unit change of $x_j$, hoding all other predictors fixed.]

---
# Parameter estimation

$$\text{sales}=\beta_0+\beta_1\cdot\text{TV}+\beta_2\cdot\text{radio}+\beta_3\cdot\text{newspaper}+\epsilon$$

How do we estimate the model parameters?

.center[![:scale 40%](./images/advertising.png)]

---
# Parameter estimation

$$Y=\beta_0+\beta_1\cdot x_1+\beta_2\cdot x_2+\cdots+\beta_p\cdot x_p+\epsilon$$

How do we estimate the model parameters?

$$y\_1, \;x\_{1, 1}, \;x\_{2, 1}, \;x\_{3, 1}, \cdots, \;x\_{p, 1}$$
$$y\_2, \;x\_{1, 2}, \;x\_{2, 2}, \;x\_{3, 2}, \cdots, \;x\_{p, 2}$$
$$\cdots$$
$$y\_n, \;x\_{1, n}, \;x\_{2, n}, \;x\_{3, n}, \cdots, \;x\_{p, n}$$

Most ideas in the .red[multiple] linear regression are natural extensions of the .green[simple] linear regression.

---

# Ordinary Least Squares (OLS)

We choose the parameters ($\beta_0, \beta_1, \cdots, \beta_p$) such that the Residual Sum of Squares (RSS) is minimized.

$$
\begin{aligned}
\text{RSS}&=\sum\_{i=1}^n (y\_i -\hat{y\_i})^2 \\\
\\\
&=\sum\_{i=1}^n \big[y\_i - (\beta\_0 + \beta\_1 x\_{1,i}+ \beta\_2 x\_{2,i} +\cdots+ \beta\_p x\_{p,i})\big]^2 \\\
\end{aligned}
$$

In practice, we rely on statistical software/libraries (e.g., `statsmodels`) to calculate the estimates.

---
First question:

.red[Is the model useful at all in predicting the response?]

$$Y=\beta_0+\beta_1\cdot x_1+\beta_2\cdot x_2+\cdots+\beta_p\cdot x_p+\epsilon$$

Model utility test:

$H_0$: The model is not useful at all.

$H_a$: The model is at least somewhat useful.

$$
\begin{aligned}
&H_0: \beta_1 = \beta_2 = \cdots = \beta_p = 0 \\\
\\\
&H_a: \text{at least one $\beta_j$ is not zero} \\\
\end{aligned}
$$

---

# ANOVA (Analysis of Variance) table

---
# The F-statistic

$$\text{F}=\frac{(\text{TSS}-\text{RSS})/p}{\text{RSS}/(n-p-1)}$$

$$
\begin{aligned}
\text{where }\text{TSS}&=\sum(y_i-\bar{y})^2 \\\
\text{and }\text{RSS}&=\sum(y_i-\hat{y}_i)^2 \\\
\end{aligned}
$$

--
If $H_0$ is true, the F-statistic follows an [F-distribution](https://probstats.org/centralF.html).

We reject $H\_0$ if $\text{F} > \text{F}_{\alpha, p, n-p-1}$.

Equivalently, we reject $H\_0$ if $p\text{-value} < \alpha$.

The model utility test is often called F-test.

---
Next question: If we conclude that the model is useful,
.red[which subset of the predictors are useful?]

$$H_0: \beta_j = 0, \;\;\;\;H_a: \\beta_j \neq 0$$

$$\text{$t$-test:}\;\;\;\;\;\;\text{$t$-statistic}=\frac{\hat{\beta}_j}{\text{SE}\big(\hat{\beta}_j\big)}$$

We reject $H_0$ and state $x_j$ is a significant predictor if

$$|\text{$t$-statistic}|>t_{\alpha/2, n-p-1} \;\;\;\;\text{or}\;\;\;\;p\text{-value} < \alpha$$

Confidence interval for each slope estimate $\hat{\beta}_j$

$$\hat{\beta}\_j \pm t\_{\alpha/2, n-p-1} \cdot \text{SE}\big(\hat{\beta}\_j\big)$$

---

How accurate is the model?

.green[Average amount of errors]: Residual Standard Error

$$\small{\text{Simple linear regression: }\;\;\;\;\text{RSE}=\sqrt{\frac{\text{RSS}}{n-2}}}$$

$$\small{\text{Multiple linear regression: }\;\;\;\;\text{RSE}=\sqrt{\frac{\text{RSS}}{n-p-1}}}$$

`"sales ~ TV"`

```
RSE = 3.259
```

`"sales ~ TV + radio + newspaper"`

```
RSE = 1.686
```

---

How accurate is the model?

$R^2 \text{statistic}$ (also called .green[coefficient of determination])

$$R^2=\frac{\text{TSS}-\text{RSS}}{\text{TSS}}=1-\frac{\text{RSS}}{\text{TSS}}$$

`"sales ~ TV"`

```
R2 = 0.612
```

`"sales ~ TV + radio + newspaper"`

```
R2 = 0.897
```

---
How to make a prediction?

$$Y=\beta_0+\beta_1\cdot x_1+\beta_2\cdot x_2+\cdots+\beta_p\cdot x_p+\epsilon$$

$$\text{where } \epsilon \sim \text{N}(0, \sigma^2)$$

True regression plane

$$\text{E}[Y]=\beta_0+\beta_1\cdot x_1+\beta_2\cdot x_2+\cdots+\beta_p\cdot x_p$$

Lease squares plane (fitted model based on OLS)

$$\hat{y}=\hat{\beta}_0+\hat{\beta}_1\cdot x_1+\hat{\beta}_2\cdot x_2+\cdots+\hat{\beta}_p\cdot x_p$$

We use the $\hat{y}$ above to make a prediction.

---
How accurate is the prediction?

Often times we want to build a confidence interval (CI) around the prediction (which is a single number) to reflect the prediction accuracy.

Confidence interval of the mean:

It's a CI of the .red[average response for all observations] at $x_1=x_1^\*, x_2=x_2^\*, \cdots, x_p=x_p^*$

$$\hat{Y}_{\text{mean}}=\hat{B}_0+\hat{B}_1\cdot x_1^\*+\hat{B}_2\cdot x_2^\*+\cdots+\hat{B}_p\cdot x_p^*$$

$$\small{\hat{\beta}\_0+\hat{\beta}\_1\cdot x\_1^\*+\hat{\beta}\_2\cdot x\_2^\*+\cdots+\hat{\beta}\_p\cdot x\_p^* \;\pm\; t\_{\frac{\alpha}{2}, n-p-1} \cdot \text{SE}\big(\hat{Y}_{\text{mean}}\big)}$$

---

Prediction interval (PI):

It's a CI of .red[one particular, single observation] at $x_1=x_1^\*, x_2=x_2^\*, \cdots, x_p=x_p^*$

$$
  \begin{aligned}
  \hat{Y}&=\hat{B}\_0+\hat{B}\_1\cdot x\_1^\*+\hat{B}\_2\cdot x\_2^\*+\cdots+\hat{B}\_p\cdot x\_p^*+\epsilon \\\
  &=\hat{Y}\_{\text{mean}}+\epsilon \\\
  \end{aligned}
$$

$$\small{\hat{\beta}\_0+\hat{\beta}\_1\cdot x\_1^\*+\hat{\beta}\_2\cdot x\_2^\*+\cdots+\hat{\beta}\_p\cdot x\_p^* \;\pm\; t\_{\frac{\alpha}{2}, n-p-1} \cdot \text{SE}(\hat{Y})}$$

--
The formula to calculate $\text{SE}\big(\hat{Y}_{\text{mean}}\big)$ and $\text{SE}(\hat{Y})$ are complex in the multiple linear regression case.

In practice we can get the CI of the mean and PI from software (e.g., `statsmodels`).

---
Is there any "synergy" among the predictors?

$$\text{sales}=\beta_0+\beta_1\cdot\text{TV}+\beta_2\cdot\text{radio}+\epsilon$$

$$\hat{\text{sales}}=2.9211+0.0458\cdot\text{TV}+0.1880\cdot\text{radio}$$

A 1-unit increase in TV budget corresponds to an expected 0.0458 increase of the sales.

This is always the case .red[regardless of the radio budget].

In reality, however, the effectiveness of TV on sales .red[may depend on the level of the radio budget].

E.g., maybe when the radio budget is high, the TV is more effective (i.e., 1-unit increase of TV corresponds to more sales increase).

---

In marketing: synergy (effect)

In statistics: interaction (effect)

How can we model the interaction effect?

$$\text{sales}=\beta_0+\beta_1\cdot\text{TV}+\beta_2\cdot\text{radio}\color{red}{+\beta_3\cdot\text{TV $\cdot$ radio}}+\epsilon$$

<br>

--
The effect of TV on sales depends on radio.

We can perform the same *t*-test to examine if the interaction effect is significant or not.

.small[**Hierarchical principle**: if we include an interaction in a model, we should also include the main effects, even if the *p*-values associated with the main effects are not significant. ]
