## IMSE 440
## Applied Statistical Models in Engineering

## Multiple linear regression
## Categorical predictors

[ISLR book](https://www.statlearning.com): Chapter 3.3.1

---
# Categorical predictors

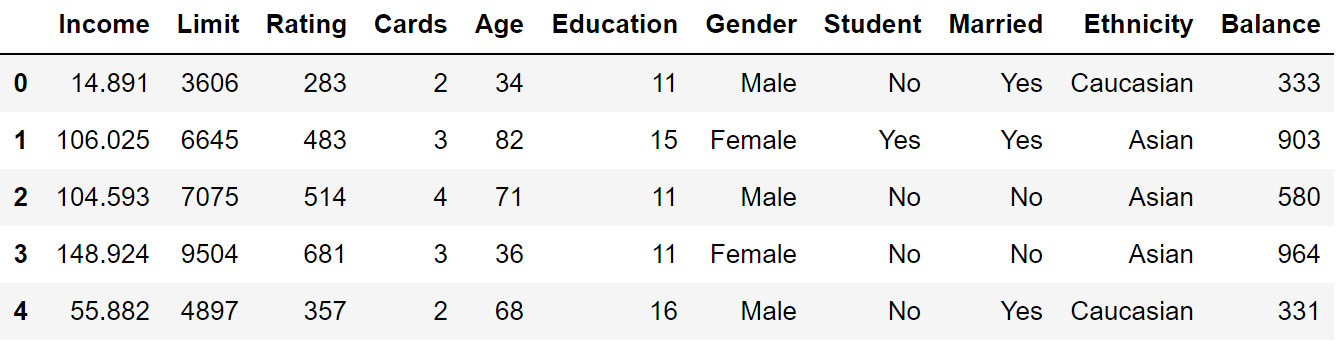

.center[![:scale 90%](./images/credit.png)]

A binary dummy variable:

$$
\small{
\text{student} =
\begin{cases}
    1, & \text{if “Yes”,} \\\
    0, & \text{if “No”.}
\end{cases}
}
$$

The category that is set to zero is commonly referred to as the .red[baseline].

$$\small{\text{balance}=\beta_0+\beta_1\cdot\text{income}+\beta_2\cdot\text{student}+\epsilon}$$

---

$$
\small{
\begin{aligned}
\text{balance}&=\beta_0+\beta_1\cdot\text{income}+\beta_2\cdot\text{student}+\epsilon \\\
\\\
\text{E[balance]}&=\beta_0+\beta_1\cdot\text{income}+\beta_2\cdot\text{student}
\end{aligned}
}
$$

$$
\small{
\begin{aligned}
\color{gray}{\text{For non-students:}}\;\;\;\;\text{E[balance]}&=\beta_0+\beta_1\cdot\text{income}+\beta_2\cdot \color{red}{0} \\\
\\\
&=\beta_0+\beta_1\cdot\text{income} \\\
\\\
\color{gray}{\text{For students:}}\;\;\;\;\text{E[balance]}&=\beta_0+\beta_1\cdot\text{income}+\beta_2\cdot \color{red}{1} \\\
\\\
&=(\beta_0+\beta_2)+\beta_1\cdot\text{income} \\\
\end{aligned}
}
$$

What are the interpretations of the model parameters?

---

What if the effect of income on balance is different for students vs. non-students?

$$
\small{
\begin{aligned}
\text{balance}=\beta_0&+\beta_1\cdot\text{income} \\\
&+\beta_2\cdot\text{student} \\\
&+ \color{blue}{\beta_3\cdot\text{income $\cdot$ student}}+\epsilon \\\
\end{aligned}
}
$$

$$
\small{
\begin{aligned}
\color{gray}{\text{For non-students:}}\;\;\;\;\text{E[balance]}=\beta_0&+\beta_1\cdot\text{income} \\\
&+\beta_2\cdot \color{red}{0} \\\
&+ \beta_3\cdot\text{income $\cdot$} \color{red}{0} \\\
=\beta_0&+\beta_1\cdot\text{income} \\\
\\\
\color{gray}{\text{For students:}}\;\;\;\;\text{E[balance]}=\beta_0&+\beta_1\cdot\text{income} \\\
&+\beta_2\cdot \color{red}{1} \\\
&+ \beta_3\cdot\text{income $\cdot$} \color{red}{1} \\\
=\beta_0 &+ \beta_2+(\beta_1+\beta_3)\cdot\text{income} \\\
\end{aligned}
}
$$

---

$$
\small{
\begin{aligned}
\color{gray}{\text{For non-students:}}\;\;\;\;\text{E[balance]}=\beta_0&+\beta_1\cdot\text{income} \\\
\\\
\color{gray}{\text{For students:}}\;\;\;\;\text{E[balance]}=\beta_0 &+ \beta_2+(\beta_1+\beta_3)\cdot\text{income} \\\
\end{aligned}
}
$$

---
# Categorical predictors with 3+ levels

![:scale 100%](./images/credit.png)

Ethnicity: African American, Asian, Caucasian

A dummy variable that takes 3 values? For example:

$$
\small{
\text{ethnicity} =
\begin{cases}
    0, & \text{if “African American”,} \\\
    1, & \text{if “Asian”,} \\\
    2, & \text{if “Caucasian”.} \\\
\end{cases}
}
$$

$$\small{\text{balance}=\beta_0+\beta_1\cdot\text{income}+\beta_2\cdot\text{ethnicity}+\epsilon}$$

---

$$\small{\text{E[balance]}=\beta_0+\beta_1\cdot\text{income}+\beta_2\cdot\text{ethnicity}}$$

$$
\small{
\begin{aligned}
\color{gray}{\text{For African American:}}\;\;\text{E[balance]}&=\beta_0+\beta_1\cdot\text{income}+\beta_2\cdot \color{red}{0} \\\
\\\
&=\beta_0+\beta_1\cdot\text{income} \\\
\\\
\color{gray}{\text{For Asian:}}\;\;\text{E[balance]}&=\beta_0+\beta_1\cdot\text{income}+\beta_2\cdot \color{red}{1} \\\
\\\
&=(\beta_0+\beta_2)+\beta_1\cdot\text{income} \\\
\\\
\color{gray}{\text{For Caucasian:}}\;\;\text{E[balance]}&=\beta_0+\beta_1\cdot\text{income}+\beta_2\cdot \color{red}{2} \\\
\\\
&=(\beta_0+2\beta_2)+\beta_1\cdot\text{income} \\\
\end{aligned}
}
$$

---
A better way: using .red[two] binary dummy variables

$$
\small{
\text{asian} =
\begin{cases}
    1, & \text{if “Asian”,} \\\
    0, & \text{otherwise.} \\\
\end{cases}
},\;\;\;
\text{caucasian} =
\begin{cases}
    1, & \text{if Caucasian,} \\\
    0, & \text{otherwise.} \\\
\end{cases}
$$

$$\small{
  \text{(asian, caucasian)}=
  \begin{cases}
  (1, 0), & \text{if “Asian”,} \\\
  (0, 1), & \text{if “Caucasian”,} \\\
  (0, 0), & \text{if “African American”.} \\\
\end{cases}
}$$

$$\small{\text{balance}=\beta_0+\beta_1\cdot\text{income}+\beta_2\cdot\text{asian}+\beta_3\cdot\text{caucasian}+\epsilon}$$

---

$$\small{\text{E[balance]}=\beta_0+\beta_1\cdot\text{income}+\beta_2\cdot\text{asian}+\beta_3\cdot\text{caucasian}}$$

$$
\small{
\begin{aligned}
\color{gray}{\text{For AA:}}\;\;
\text{E[balance]}&=\beta_0+\beta_1\cdot\text{income}+\beta_2\cdot 0 +\beta_3\cdot 0 \\\
&=\beta_0+\beta_1\cdot\text{income} \\\
\\\
\color{gray}{\text{For Asian:}}\;\;
\text{E[balance]}&=\beta_0+\beta_1\cdot\text{income}+\beta_2\cdot 1 +\beta_3\cdot 0 \\\
&=(\beta_0+\beta_2)+\beta_1\cdot\text{income} \\\
\\\
\color{gray}{\text{For Caucasian:}}\;\;
\text{E[balance]}&=\beta_0+\beta_1\cdot\text{income}+\beta_2\cdot 0 +\beta_3\cdot 1 \\\
&=(\beta_0+\beta_3)+\beta_1\cdot\text{income} \\\
\\\
\end{aligned}
}
$$

---
What if a categorical predictor has 4 levels (A, B, C, D) ?

In general, we need .red[one fewer] dummy binary variables than the number of levels.

---
# We can further add the interaction terms

$$\small{
  \begin{aligned}
  \text{balance}=\beta_0&+\beta_1\cdot\text{income}\\\
  &+\beta_2\cdot\text{asian}\\\
  &+\beta_3\cdot\text{caucasian} \\\
  &+\beta_4\cdot\text{income}\cdot \text{asian}   \;\;\;\;\;\;\;\;\;\;\;\;\;\;\; \color{lightgray}{\rightarrow \text{2-way interaction}}\\\
  &+\beta_5\cdot\text{income}\cdot \text{caucasian} \;\;\;\;\;\;\;\;\; \color{lightgray}{\rightarrow \text{2-way interaction}}\\\
  &+\beta_6\cdot\text{income}\cdot \text{asian} \cdot \text{caucasian} \color{lightgray}{\rightarrow \text{3-way interaction}}\\\
  &+\epsilon
  \end{aligned}
}
$$
